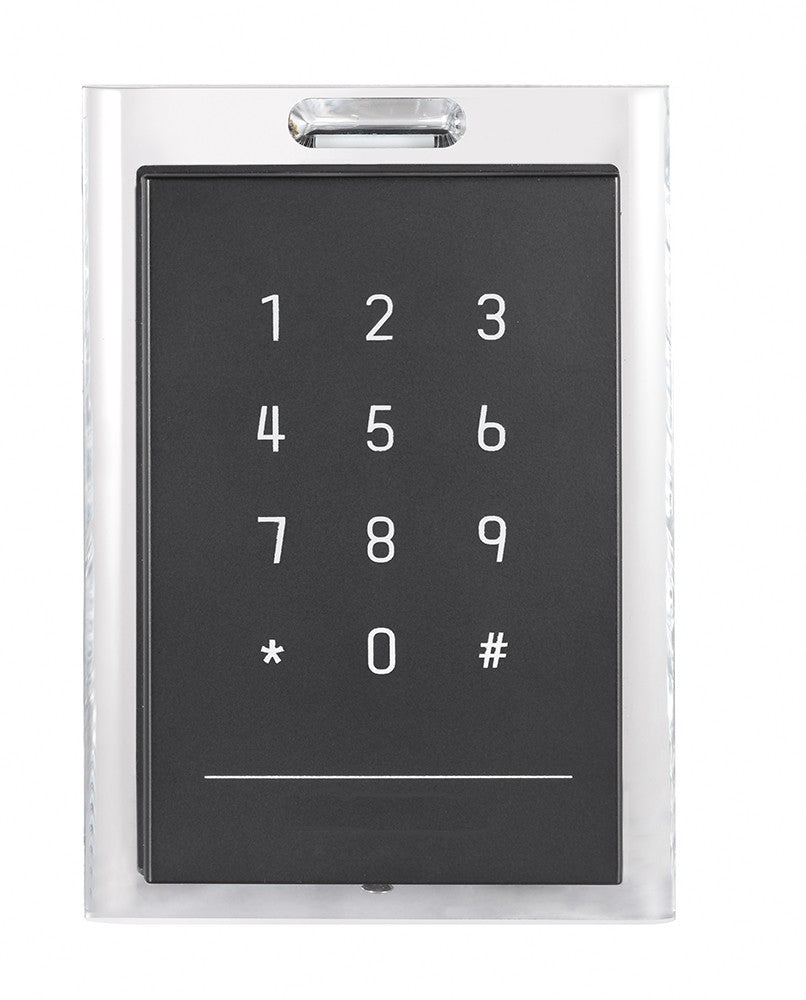

LTK1101MK, Mifare Card Reader

Built-in audible beeper;
Display the reader status with LED indicator;
Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader;
Dust-proof and weather-proof design;
Equipped with the 32-bit high-speed processor;
RS485 and Wiegand(W26/W34) protocol;
DIP switch;
PC+ABS material shell with PMMA panel design;
Read Mifare card and obtain the card No.
Power Supply DC 12V
Working Current ≤500mA
Processor 32-bit
Reading Frequency 13.56MHz
Reading Range ≤50mm (≤1.97")
ID Settings via DIP Switch
Audio Alert Beeper
Power Consumption ≤2W
Keypad with 12 Keys (0 to 9, *, #) for LTK1101MK
Certification FCC, CE
LED Indicator Power Indicator; Status LED Indicator
Working Temperature -4°F to +149°F(-20°C to +65°C)
Working Humidity 10 % to 90 % (Non-Condensing)
Water-proof IP64
Dimensions 5.20” × 3.63” × 0.81"(132.0mm × 92.3mm × 20.5mm)
Weight ≤ 0.31lb (0.14Kg)
Installing Method Only applied for120 Gang Box

Product variants

Quantity

$72.50 USD

~~$110.00 USD~~ $72.50 USD

Sale Sold out

Shipping & Returns

Free Shipping when you spend $200
FREE SHIPPING ON ORDERS OVER $200 USE CODE "FREESHIP200"
30 Day Return Policy
3-Day Hassle Free Return Policy
