Vonnic

DVR-XVR-HAR524-32 XVR, 32 CH 4 in 1 HD-TVI-4MP/ AHD/ 960H/ 8 CH IP (2MP): 1080p Resolution, 960 FPS Display, Recording 960 FPS @ 720p & 960H/ 480FPS @1080p, H.265, 16 CH Audio, HDMI & VGA,CMS Multi Site Monitoring, Smart Mobile Phone, 4 x 10TB

DVR-XVR-HAR524-32 XVR, 32 CH 4 in 1 HD-TVI-4MP/ AHD/ 960H/ 8 CH IP (2MP): 1080p Resolution, 960 FPS Display, Recording 960 FPS @ 720p & 960H/ 480FPS @1080p, H.265, 16 CH Audio, HDMI & VGA,CMS Multi Site Monitoring, Smart Mobile Phone, 4 x 10TB

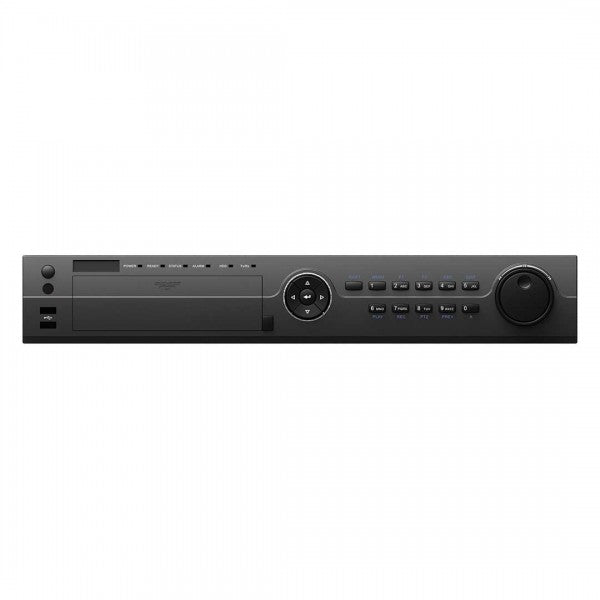

Model: DVR-XVR-HAR524-32

    • H.264 & Dual-stream video compression
    • Support HD-TVI/analog/IP camera triple hybrid
    • Support 8 IP Cameras, up to 2 MP
    • Disable TVI in order to add more IP
    • Support both HD-TVI and analog cameras with adaptive access
    • HDMI and VGA output are up to 1920 × 1080P resolution
    • Connectable to the Coaxitron camera/dome with long transmission distance
    • Support up to 16 Ch. synchronous playback
Specifications
Model Number HAR524-32
Video compression H.265, H.265+ H.264, H.264+
HD-TVI/ Analog Video Input 32 Ch. BNC input, 1Vp-p, 75Ω
Supported camera types 4MP HDTVI 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio compression G.711u
Audio Input/ Two-way audio in 4 Ch. input/1 Ch. two way audio RCA (2.0 Vp-p, 1kΩ)
Video output 1 HDMI, 1 VGA, 1 CVBS, up to 1920 x 1080
Encoding resolution Main stream: 1080P (non-real-time) / 720P / VGA / WD1 / 4CIF / CIF, Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate 32 Kbps to 6 Mbps
Audio output 1 Ch., RCA (Linear, 1KΩ, for VGA output and CVBS output)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video & Audio
Synchronous playback 16 Ch.
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections 128
Type 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Capacity Up to 8 TB capacity for each disk
Network interface 1; 10M / 100M / 1000M
self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB Interface 3 × USB2.0
Power 100 ~ 240VAC, 47 ~ 63HZ, <=65W
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions (W × D × H) 17.5″W × 15.3″D × 2.7″H
Weight (Without hard disks) 17.6 lbs
Regular price $852.60 USD
Regular price $1,230.18 USD Sale price $852.60 USD
