Vonnic
DVR-XVR-HAR324-16 XVR, 16 CH XVR TVI-3MP/ CVI/ AHD/ 960H/ IP: 1080p Resolution, 240 FPS @1080p Recording, (192FPS @ TVI 3MP), H.264+, All CH Playback, Audio, HDMI(4K), VGA & CVBS Out, RS-485, CMS Multi Site Monitoring, Smart Mobile Phone, 2 x 10TB
DVR-XVR-HAR324-16 XVR, 16 CH XVR TVI-3MP/ CVI/ AHD/ 960H/ IP: 1080p Resolution, 240 FPS @1080p Recording, (192FPS @ TVI 3MP), H.264+, All CH Playback, Audio, HDMI(4K), VGA & CVBS Out, RS-485, CMS Multi Site Monitoring, Smart Mobile Phone, 2 x 10TB
XVR Solution: Hikvision OEM Support 3MP TVI Cameras, 5 in 1: TVI/ AHD/ 960H/ CVI / IP

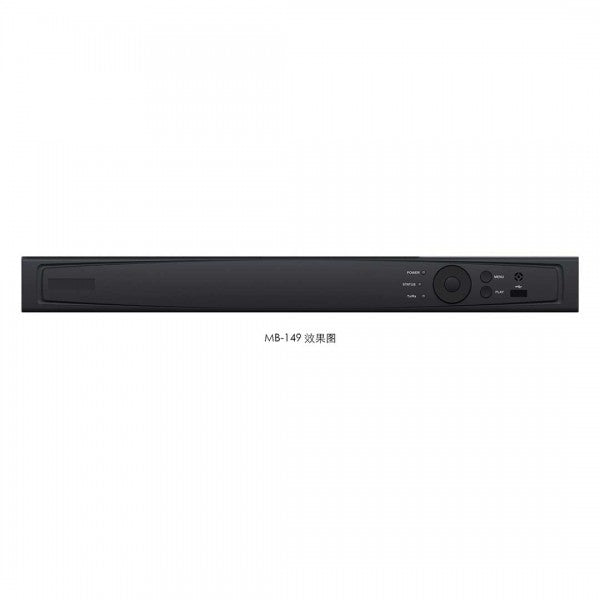

Model: DVR-XVR-HAR324-16
- H.265+/H.265/H.264+/H.264 Video Compression
- Support HDCVI, HDTVI, AHD, and Analog Cameras with adaptive access
- 2-Ch, 4 MP IP cameras input, 4-Ch 3MP TVI input
- Full Channel@1080PLite resolution real-time recording
- VGA and HDMI output up to 1080p
- Long transmission distance over coax cable
- Support up to 16 Ch. synchronous playback
| Specifications | ||
|---|---|---|
| Model Number | DVR-XVR-HAR324-16 | |
| Video compression | H.264 / H.264+ /H.265 / H.265+ | |
| Analog, AHD, HD-TVI and HD-CVI video input | 16 Ch., BNC interface (1.0Vp-p, 75Ω) | |
| HDTVI Input | 3 MP, 1080p, 720p. Note: The 3 MP signal input is only available for channel 1/2/3/4 | |
| AHD Input | 1080p, 720p | |
| HDCVI Input | 1080p, 720p | |
| CVBS Input | PAL/NTSC | |
| IP Video Input | 2CH, Up to 4MP Resolution / Supports H.265+ / H.265 / H.264+ / H.264 IP cameras | |
| Audio compression | G.711u | |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Encoding resolution | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Frame rate |
Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) Sub-stream: When 1080p Lite mode not enabled: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video bitrate | 32 Kbps to 6 Mbps | |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) | |
| Audio bitrate | 64 Kbps | |
| Dual-stream | Support | |
| Stream type | Video & Audio | |
| Synchronous playback | 16 Ch. | |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
| Remote connections | 128 | |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| SATA | 2 SATA interface | |
| Capacity | Up to 10TB capacity for each disk | |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| Serial interface | 1 x RS-485 serial interface | |
| USB port | 2 × USB2.0 (front), 1 x USB3.0 (rear) | |
| Power supply | 12 VDC | |
| Consumption (without hard disks) | ≤ 25W | |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working humidity | 10% ~ 90% | |
| Dimensions | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight (without hard disks) | 4.4 lb |
