Vonnic

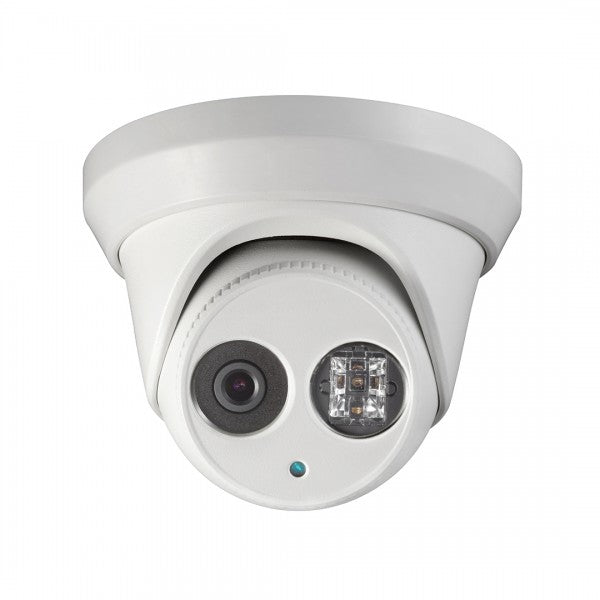

VIP-HNC328XD-2.8 Dome-Turret Cameras, 8 Megapixel, 2.8mm HD Lens, EXIR LEDs Up to 100ft, 3DNR, WDR, BLC, IP67, Micro SD-128GB, PoE

VIP-HNC328XD-2.8 Dome-Turret Cameras, 8 Megapixel, 2.8mm HD Lens, EXIR LEDs Up to 100ft, 3DNR, WDR, BLC, IP67, Micro SD-128GB, PoE

IP DOME: 8MP EXIR TURRET, EXTERIOR

Model: VIP-HNC328XD-2.8(4.0mm optional)

    • 8 Megapixel (3840 x 2160) Resolution
    • Full HD 5MP real-time video
    • True WDR & 3D DNR & BLC
    • EXIR illuminator up to 100ft.
    • IP67
    • PoE
Specifications
Model Number VIP-HNC328XD-2.8
Image Sensor 1/2.5″ progressive scan CMOS
Min. illumination 0.01 lux @ F1.2, AGC ON, 0 lux with IR
Shutter time 1/3s ~ 1/100,000s
Lens



available

2.8mm @ F1.6, angle of view: 102°(4.0mm optional)
Angle adjustment Pan: 0° ~ 355°, tilt 0° ~ 75°
Digital noise reduction 3D DNR
Wide dynamic range True WDR, 120db
Backlight compensation Yes, zone configurable
Video compression H.264 / MJPEG / H.264+ / H.265
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 3840 x 2160
Frame rate 15fps (3840×2160), 30fps (2944×1656)30fps(1920×1080)
Image settings Saturation, brightness, contrast, sharpness adjustable through client software or web browser
Network storage NAS
Alarm trigger Motion detection, tampering alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Communication interface 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC +/- 10%, PoE (802.3af)
Power consumption Max, 5W (7W with ICR on)
Ingress protection IP67
EXIR range up to 100ft
Dimensions Ø 127 x 97.5 mm ( 5″x3.8″ )
Weight 670g (1.5 lbs)
Electrical Box HTH-285ZJ-M(B)
Wall Mount HTH-273ZJ-130B-TRL
Corner and Pole C:HTH-276ZJ, P:HTH-275ZJ
