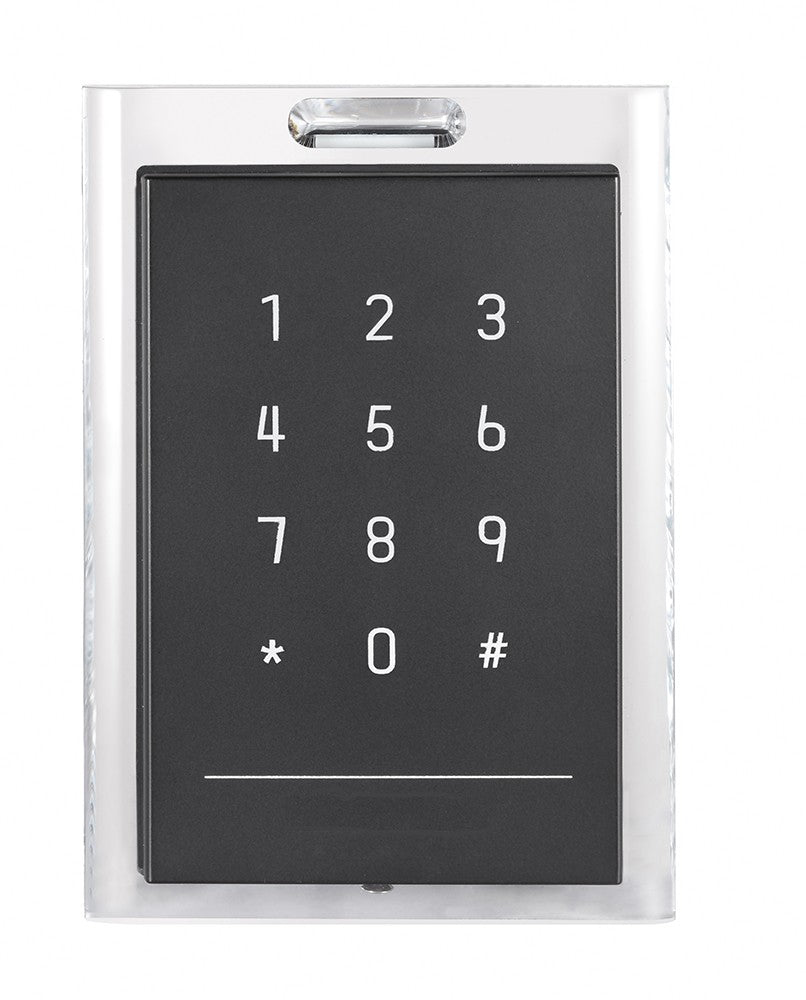

LTK1101MK, Mifare Card Reader
LTK1101MK, Mifare Card Reader
- Built-in audible beeper;
- Display the reader status with LED indicator;
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader;
- Dust-proof and weather-proof design;
- Equipped with the 32-bit high-speed processor;
- RS485 and Wiegand(W26/W34) protocol;
- DIP switch;
- PC+ABS material shell with PMMA panel design;
- Read Mifare card and obtain the card No.
- Power Supply DC 12V
- Working Current ≤500mA
- Processor 32-bit
- Reading Frequency 13.56MHz
- Reading Range ≤50mm (≤1.97")
- ID Settings via DIP Switch
- Audio Alert Beeper
- Power Consumption ≤2W
- Keypad with 12 Keys (0 to 9, *, #) for LTK1101MK
- Certification FCC, CE
- LED Indicator Power Indicator; Status LED Indicator
- Working Temperature -4°F to +149°F(-20°C to +65°C)
- Working Humidity 10 % to 90 % (Non-Condensing)
- Water-proof IP64
- Dimensions 5.20” × 3.63” × 0.81"(132.0mm × 92.3mm × 20.5mm)
- Weight ≤ 0.31lb (0.14Kg)
- Installing Method Only applied for120 Gang Box
