Vonnic
DVR-XVR-HAR526-32 XVR, 32 CH 8MP 5 in 1 HD-TVI/ AHD/ Analog/ 8 CH IP (8MP): Recording 384 FPS @ 5MP; 480 FPS@ 4MP; 576FPS@ 3MP; 960FPS @1080p. H.265+, 16 CH Playback, Audio 4-1, Alarm 16-4, HDMI-4K
DVR-XVR-HAR526-32 XVR, 32 CH 8MP 5 in 1 HD-TVI/ AHD/ Analog/ 8 CH IP (8MP): Recording 384 FPS @ 5MP; 480 FPS@ 4MP; 576FPS@ 3MP; 960FPS @1080p. H.265+, 16 CH Playback, Audio 4-1, Alarm 16-4, HDMI-4K
XVR Solution: Hikvision OEM Support 5~8MP Cameras, 5 in 1: TVI/ AHD/ 960H CVI / IP-6MP, ALL Channel Playback

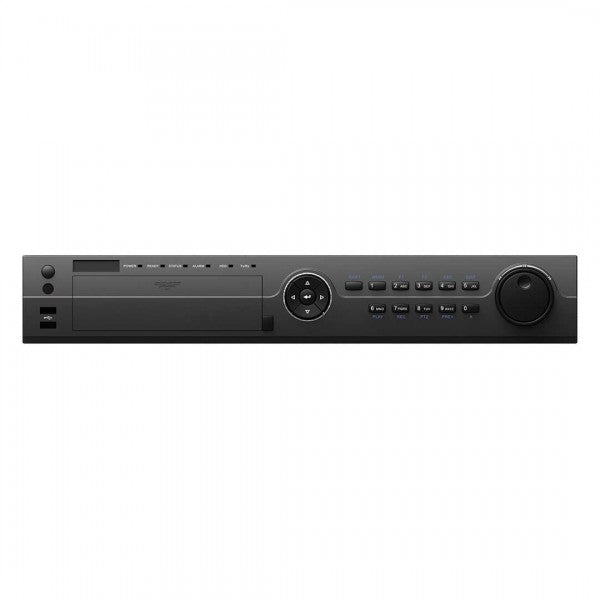

Model: DVR-XVR-HAR526-32
- H.265 & Dual-stream video compression
- Support HD-TVI/analog/AHD/HDCVI/IP camera hybrid
- Support 8 IP Cameras, up to 8 MP
- Disable TVI in order to add more IP up to 40-ch
- HDMI output up to 4K resolution
- Connectable to the Coaxitron camera/dome with long transmission distance
- Support up to 16 Ch. synchronous playback
| Specifications | ||
|---|---|---|
| Model Number | DVR-XVR-HAR526-32 | |
| Video compression | H.265+ / H.265 / H.264+ / H.264 | |
| Video Input | HDTVI up to 8MP, AHD up to 1080P, HDCVI up to 1080p, CVBS | |
| IP Video Input | 8-ch ( up to 40-ch), up to 8MP resolution. | |
| Audio compression | G.711u | |
| Audio Input/ Two-way audio in | 4 Ch. input/1 ch two way audio RCA (2.0 Vp-p, 1kΩ) | |
| HDMI1 / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| HDMI2 output | 4K (3840 x 2160)30Hz / 2K (2560 x 1440)60Hz / 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Encoding resolution | Up to 5MP | |
| Frame rate | Main stream: 8MP@ 8fps; 5MP@12fps; 4MP@15fps; 3MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@30fps Sub-stream: WD1/4CIF/CIF@30fps |
|
| Video bitrate | 32 Kbps to 10 Mbps | |
| Audio output | 1 Ch., RCA (Linear, 1KΩ, for VGA output and CVBS output) | |
| Audio bitrate | 64 Kbps | |
| Dual-stream | Support | |
| Stream type | Video & Audio | |
| Synchronous playback | 16 Ch. @ 1080p, 1 Ch. @ >1080P | |
| Remote connections | 128 | |
| HDD Type | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
| Capacity | Up to 8 TB capacity for each disk | |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
| Serial interface | RS-232, RS-485, Keyboard | |
| USB Interface | 2 × USB2.0, 1 x USB3.0 | |
| Power | 100 ~ 240VAC, Max. 74W | |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working humidity | 10% ~ 90% | |
| Chassis | 19-inch rack-mounted 1.5U chassis | |
| Dimensions (W × D × H) | 17.5″W × 15.3″D × 2.8″H | |
| Weight (Without hard disks) | 15.4 lbs |
