Vonnic

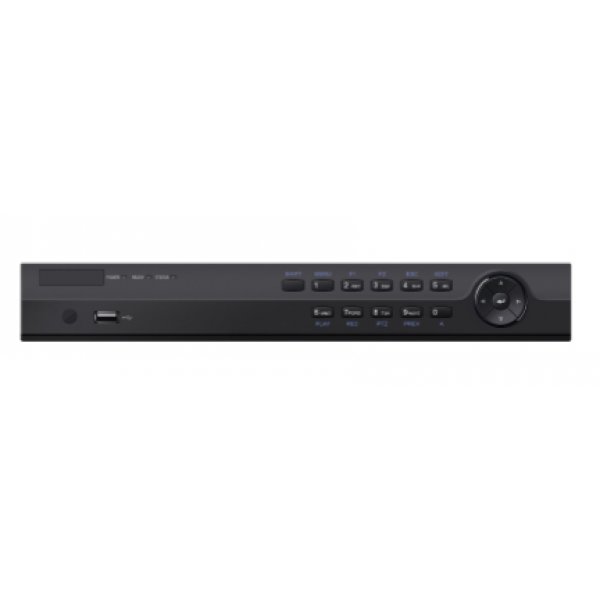

DVR-XVR-HAR326-16 XVR, 16 CH 8MP 5 in 1 HD-TVI/ AHD/ Analog/ 2 CH IP (6MP): Recording 192 FPS @ 5MP; 240 FPS@ 4MP; 288FPS@ 3MP, 480FPS @1080p. H.265+, All CH Playback, Audio 4-1, Alarm 16-4, HDMI-4K,
DVR-XVR-HAR326-16 XVR, 16 CH 8MP 5 in 1 HD-TVI/ AHD/ Analog/ 2 CH IP (6MP): Recording 192 FPS @ 5MP; 240 FPS@ 4MP; 288FPS@ 3MP, 480FPS @1080p. H.265+, All CH Playback, Audio 4-1, Alarm 16-4, HDMI-4K,
XVR Solution: Hikvision OEM Support 5~8MP Cameras, 5 in 1: TVI/ AHD/ 960H CVI / IP-6MP, ALL Channel Playback
| Specifications | ||
|---|---|---|
| Model Number | DVR-XVR-HAR326-16 | |
| Video compression | H.264 / H.264+ /H.265 / H.265+ | |
| Analog, AHD, HD-TVI and HD-CVI video input | 16 Ch., BNC interface (1.0Vp-p, 75Ω) | |
| HDTVI Input | 5MP, 3 MP, 1080p, 720p | |
| AHD Input | 1080p, 720p | |
| HDCVI Input | 1080p, 720p | |
| CVBS Input | PAL/NTSC | |
| IP Video Input | 2CH, Up to 6MP Resolution / Supports H.265+/H.265/H.264+/H.264 IP cameras | |
| Audio compression | G.711u | |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS | |
| CVBS Output | PAL/NTSC | |
| VGA output | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz | |
| HDMI output | 4K(3840 x 2160)@30Hz, 2K(2560 x 1440)@30Hz, 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz | |
| Encoding resolution | Up to 5MP @ 12fps for HD-TVI, and up to 6MP @ 20fps for IP camera. | |
| Frame rate | Up to 20fps @ 5MP TVI, and 20fps @ 6MP IP camera | |
| Video bitrate | 32 Kbps to 10 Mbps | |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) | |
| Audio bitrate | 64 Kbps | |
| Dual-stream | Support | |
| Stream type | Video, Video & Audio | |
| Synchronous playback | 16 Ch. | |
| Alarm I/O | 16/4 | |
| Remote connections | 128 Streams | |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| SATA | 2 SATA interface | |
| Capacity | Up to 10TB capacity | |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| Serial interface | 1 x RS-485 serial interface | |
| USB port | 1 × USB2.0, 1 x USB3.0 | |
| Power supply | 12 VDC | |
| Consumption (without hard disks) | ≤ 25W | |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working humidity | 10% ~ 90% | |
| Dimensions | 380 × 320 × 48 mm (15 x 12.6 x 1.9 inch) | |
| Weight (without hard disks) | 4.4 lb |
Regular price
$676.00 CAD
Regular price
$975.00 CAD
Sale price
$676.00 CAD
