Vonnic

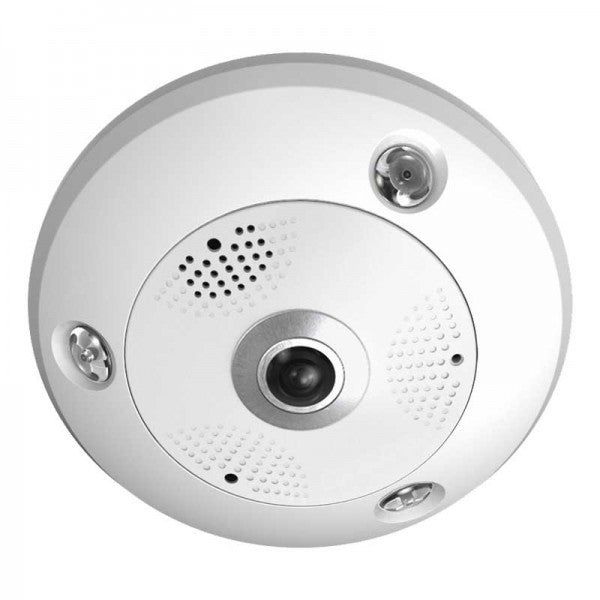

VIP-HNCA06FEA 6MP FISHEYE IP Camera, Outddor, 100' Night Vision Range, 360 degree view angle

VIP-HNCA06FEA 6MP FISHEYE IP Camera, Outddor, 100' Night Vision Range, 360 degree view angle

Model: VIP-HNCA06FEA

    • 1/1.8” progressive scan CMOS
    • 6 mega-pixel image sensor
    • Up to 3072 x 2048 real-time streaming
    • 360° view angle
    • Multiple viewing modes
    • Multiple ePTZ streams with preset and patrol functions
    • Ceiling, Wall or Table mount modes
    • Up to 30ft IR range
Specifications
Model Number VIP-HNCA06FEA
Image Sensor 1/1.8” progressive scan CMOS
Min. Illumination 0.05 lux @ (F1.2, AGC ON)
0.3 lux @ (F2.8, AGC ON )
0 lux with IR
Shutter Speed 1/25 (1/30)s ~ 1/100,000s
Lens 1.27mm @F2.8, angle of view: 360°
Lens mount M12
Day & Night ICR
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
Video Bit Rate 32 Kbps – 16 Mbps
Max. Resolution 6MP CMOS, 3072 x 2048
Frame Rate High-frame Mode: support
50Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 25fps) or
4 x PTZ at (1024 x 768, 30fps)
60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or
4 x PTZ at (1024 x 768, 30fps)
Multi-channel Mode: support
50Hz: 1 x fisheye (1280 x 1280, 12.5fps) and 1 x panoramic (2048 x 1536, 12.5fps) and 3 x PTZ
(1024 x 768, 12.5fps)
60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ
(1024 x 768, 15fps)
Number of Streams High Frame Rate Mode: 1 or 4
Multi-Channel: up to 5
(No sub-streams)
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Image Setting Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
High Light Compensation Support
Day/night Switch Auto / Manual / Scheduled / Alarm trigger
Network Storage NAS, SAMB / CIFS
Alarm trigger Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full,
storage error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security User Authentication, Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI
Communication Interface 1 RJ45 10M/100M/1000M Ethernet port
1 RS-485 interface (-S)
On-board storage Built-in Micro SD/SDXC slot, up to 64 GB
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply DC12V±10% / PoE
Power Consumption Max. 11W
IR range Max. 30ft
Protection IK10
Dimensions 164 x 152.8 x 43.8mm (6.46” x 6.02” x 1.72”)
Weight 3.08 lb
Electrical Box HTH-280ZJ-DM25, HTH-281ZJ-DM25 (Slanted)
Wall Mount HTH-273ZJ-DM25
Pendant HTH-271ZJ-DM25
Corner and Pole C:HTH-276ZJ, P:HTH-275ZJ
